product details
Description
● 10.1'Touchscreen (1920 x 1200) / Android 10.0
● 2.2GHz+1.8GHz Octa-core Processor /8+128GB Memory
● Dual Wi-Fi Connection
● 6400mAh - 6hrs Continuous Use / 8MP Rear Camera
● New VCI Protocols: DoIP/CAN FD
● Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles

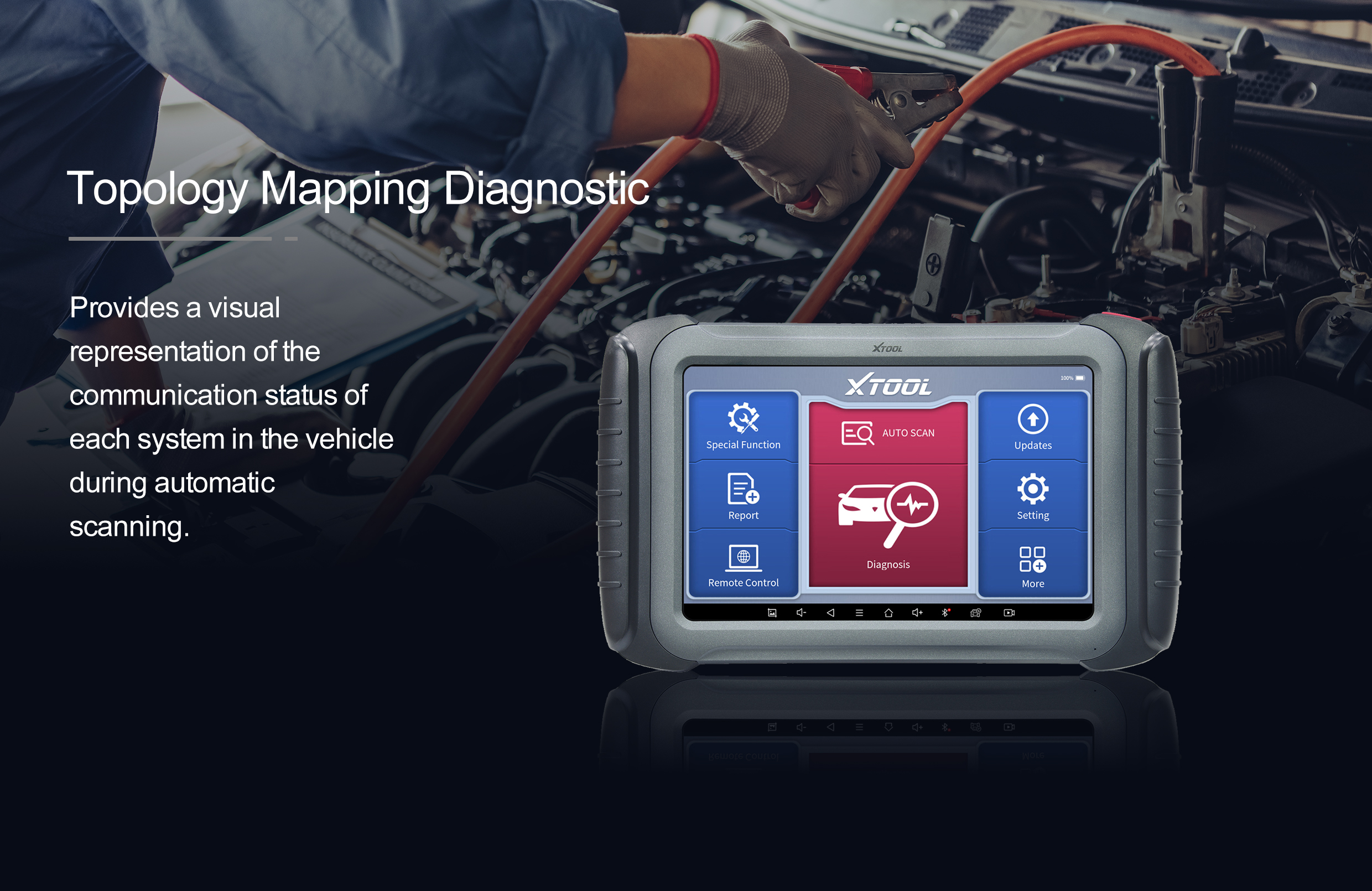

● Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
● Provides fault code guidance for VAG and BMW.

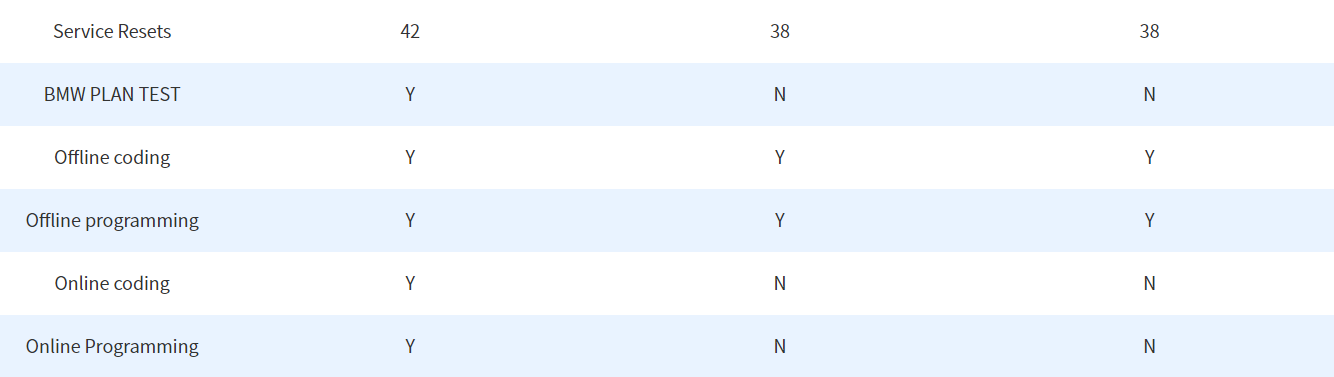

● Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz
● Perform ADAS Systems Calibrations for camera and radars
● Includes OBDI Connectors, and charging dock

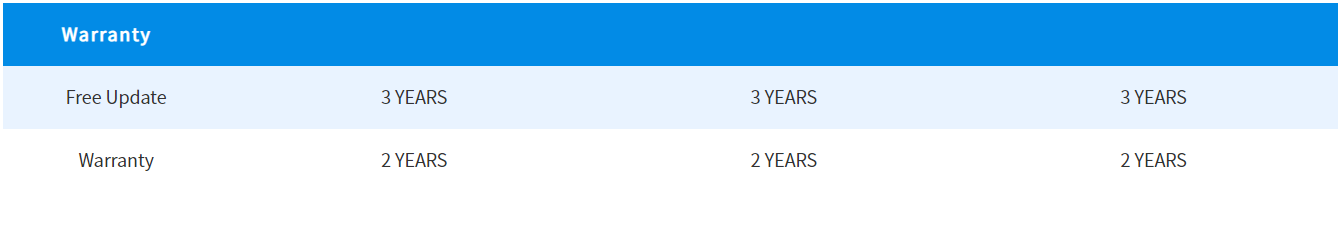

● 2YR Warranty & 3 YR Software Subscription

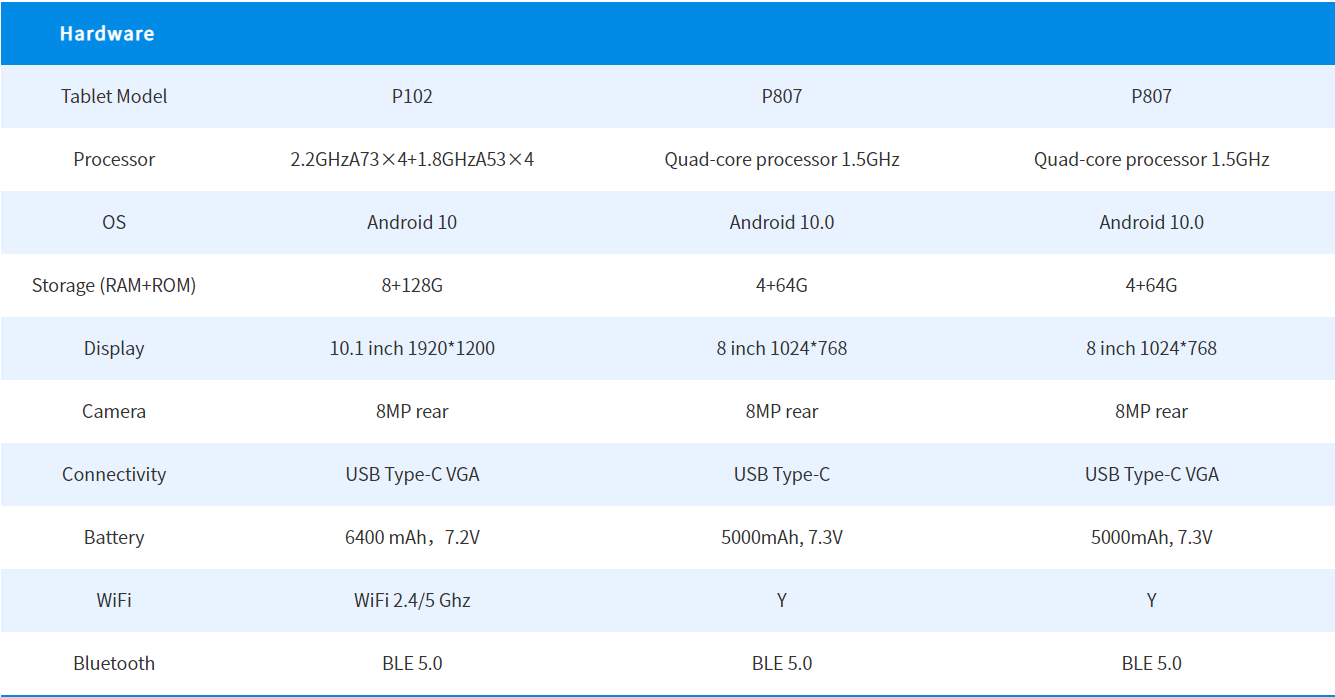

Parameters
Operating System：Android 10.0
Processor：2.2GHz+1.8GHz Octa-core Processor
Memory：8G+128G
Display：10.1-inch, 1920×1200P
Camera：8.0 Megapixel, AF with Flashlight
Auto Input/Output：Microphone, Speaker
Dimension (L×W×H):：309.2×188.9×34.9 mm
Communication Method：Wi-Fi, USB
Connectivity：Type-C
Working Voltage：9-32V
Battery：6400 mAh, 7.3V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃

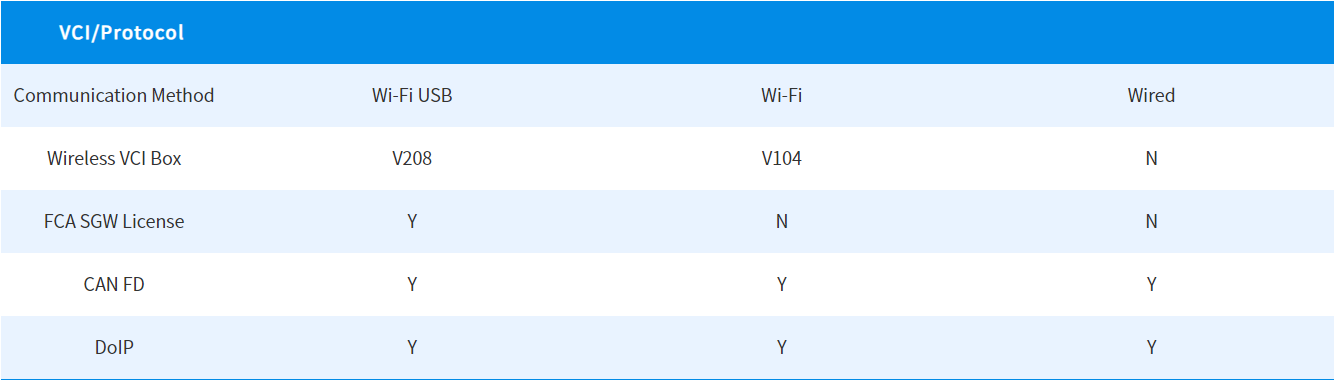

Compatible Protocol：CANFD, DoIP
PACKING LIST
Accessories
Color Carton
Packing List
Certificate of Quality
Tool Case
Quick Start Guide
Main Units
Tablet
VCI Box
Type C to Type-A Data Cable
Type C to Type-B Data Cable
Type C to Type-C Charger Cable
PD Supply Charging Adapter US
Charging Adapter EU
Charging Adapter UK
Cigar Lighter Power Plug
Test Connectors
DB15 Main Cable
OBD II-16
HONDA-3
BMW-20
BENZ-14
BENZ-38
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
