product details
XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. XT90 also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the XT90 is a versatile and reliable tool for any automotive professional.
Description
● 9.7-inch high-resolution, responsive touchscreen display, 4-core processor with 128 GB storage.
● High-performance CPU with Android 10 OS, and dual WIFI modules, bring you a smooth and hassle-free diagnostic experience.
● Extensive vehicle coverage for U.S., European, Asian and Chinese vehicle makes；take the lead in vehicle model and function coverage.
● Exceptional OE-Level system coverage for all electronic systems.

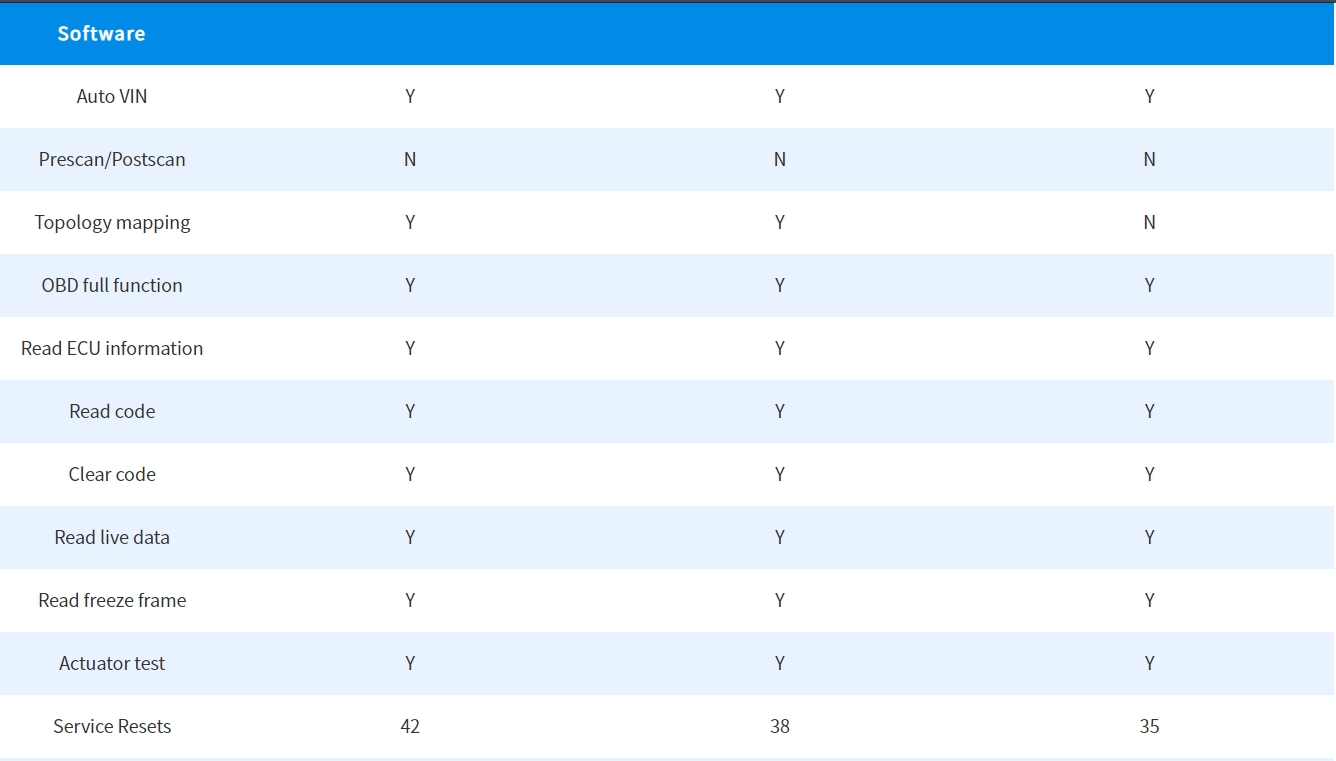

● Read/Erase DTC, live data, ECU information, bi-directional control, and special function capabilities

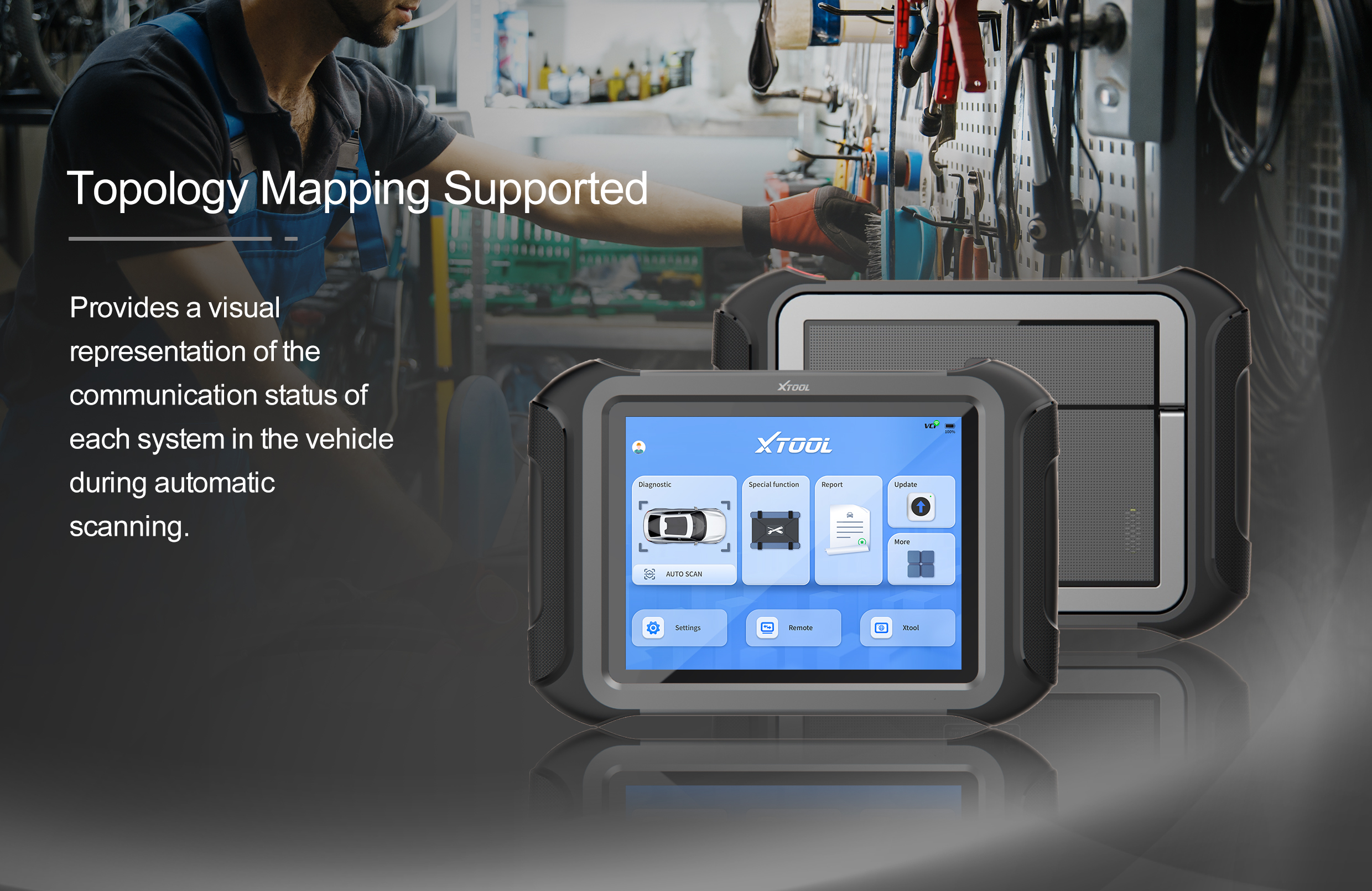

● Topology Mapping provides a visual representation of the communication status of each system in the vehicle during automatic scanning.
● Advanced 42 relearn and reset services.

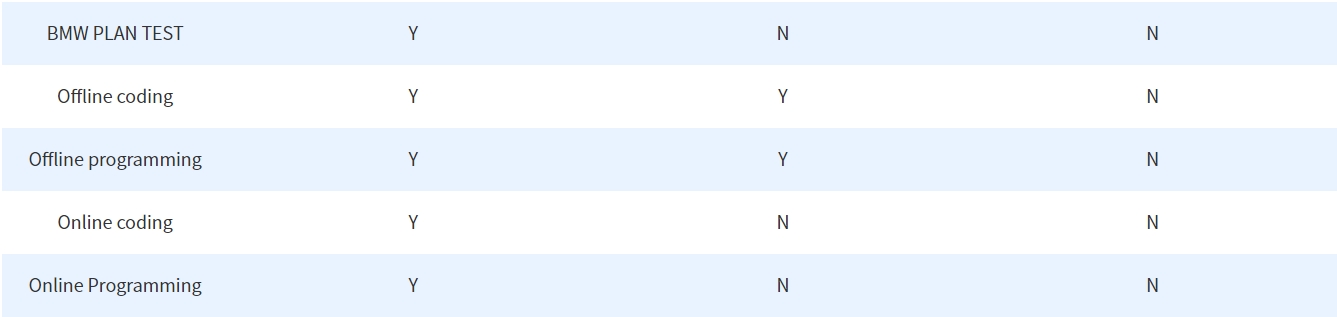

● Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz.
● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.

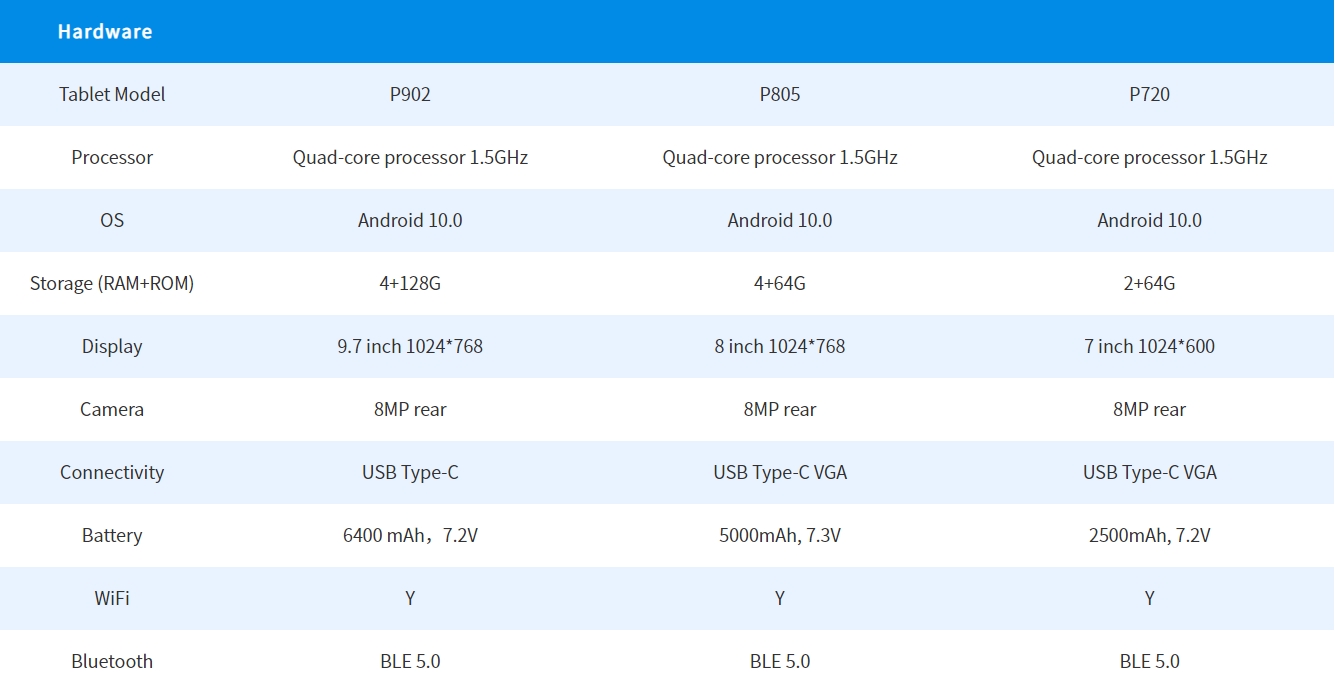

Parameters
Operating System：Android 10
Processor：4 Core 1.50GHz
Memory：4G RAM, 128G ROM
Display：9.7-inch, 1024×768P
Communication：Wi-Fi, Wired
Connectivity：Type-C, USB 3.0
Camera：8.0 Megapixel, AF with Flashlight
Battery：6400 mAh, 7.2V
Auto Input/Output：Microphone/ Speaker
Working Voltage：9 to 36V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃
Humidity：<90%
Dimension (L×W×H)：313X218X30 mm
Compatible Protocol：CANFD, DoIP
Accessories
Color Carton
Packing List
Tool Case
Desiccant
Quick Start Guide
XV200 Endoscope (Separate packaging)
Main Units
Tablet
VCI Box
USB To Type_B Main Cable
Charger for Tablet
Power Cable US
Power Cable EU
Power Cable UK
USB Data Cable (Connect to PC)
Test Connectors
HONDA-3
TOYOTA-17
BMW-20
KIA-20
MAZDA-17R
NISSAN-14
GM/DAEWOO-12
SUZUKI-3
FIAT-3
HYUNDAI/KIA-10
AUDI-4
MITSUBISHI-12+16
UNIVERSAL-3
CITROEN-2
BENZ-38
BENZ-14
OBD II-16
DB15 Main Cable
Battery Cable
Cigar Lighter Cable
