product details
XT80 is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 85 brands, 10000 cars.
Description
● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage.
● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.
● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.
● Full system diagnostics on 1996 and newer U.S., Asian and European and Chinese vehicles.
● Automatic detection: Scan all available systems with Topology Mapping.

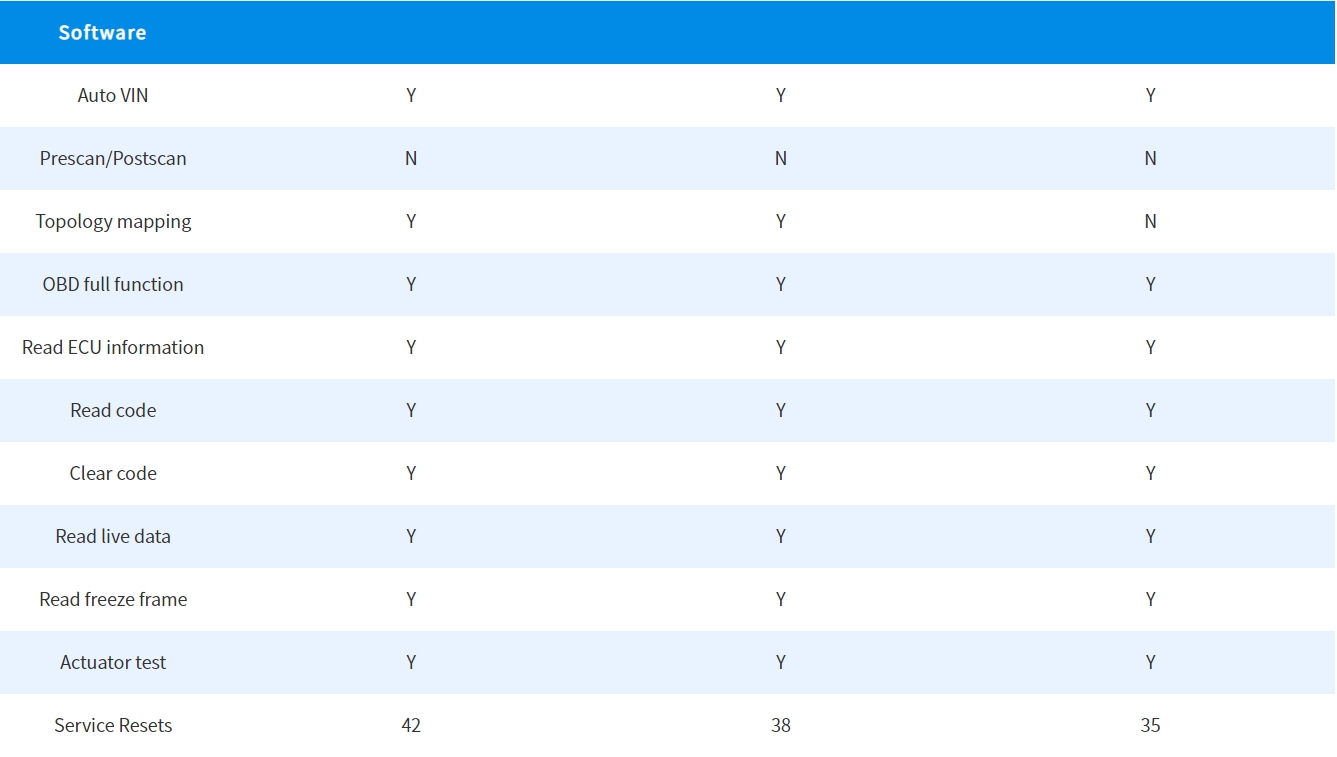

● Read/Erase Codes, View Freeze Frame and Live Data.
● Perform Actuation Tests (bi-directional controls), Coding and Adaptations.
● Autoscan for rapid vehicle identification.
● Perform ADAS (inc. Camera/s, Radar etc.) Systems Calibrations with additional purchase.
Parameters

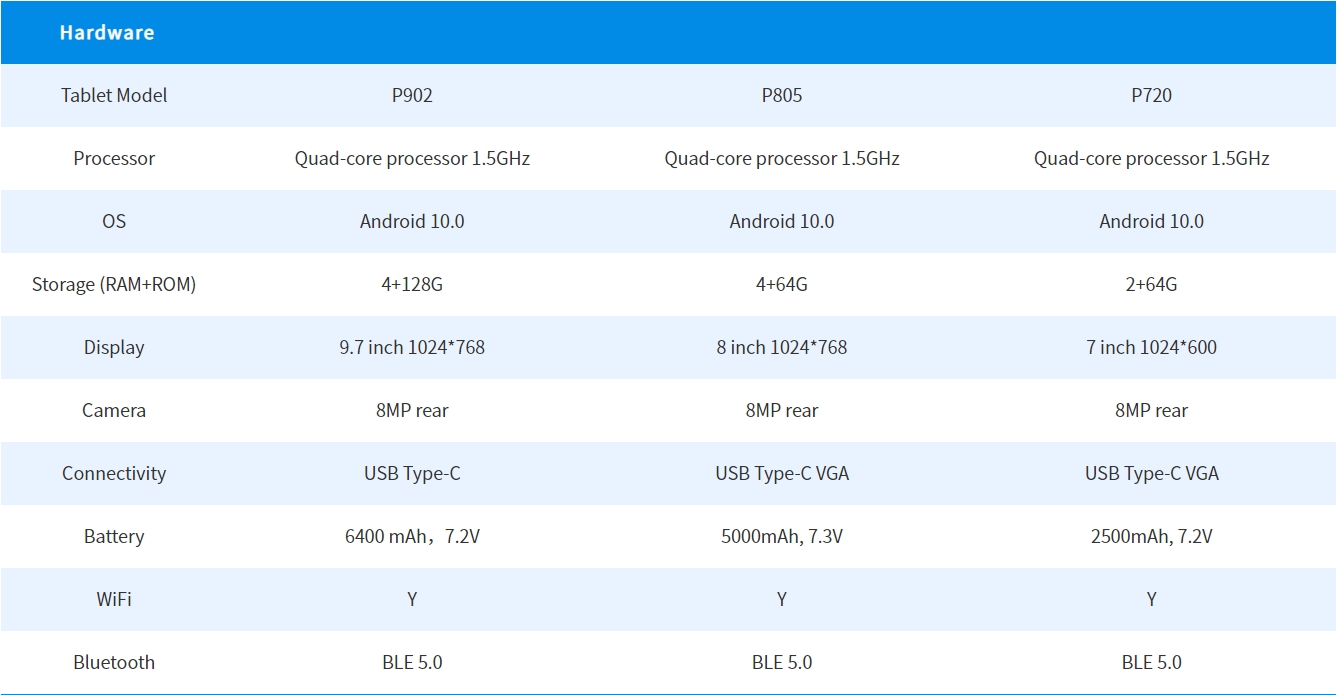

Operating System：Android 10
Processor：4 Core 1.50GHz
Memory：4G RAM, 64G ROM
Display：8-inch, 1024×768P
Communication Method：Wired
Connectivity：Type-C, USB 3.0
Camera：8.0 Megapixel, AF with Flashlight
Battery：5000mAh, 7.2V
Auto Input/Output：Microphone, Speaker
Working Voltage：9-36V
Working Temperature：0 to 40℃
Storage Temperature：-40 to 60℃
Humidity：<90%
Dimension (L×W×H)：274.0×175.0×33.8 mm

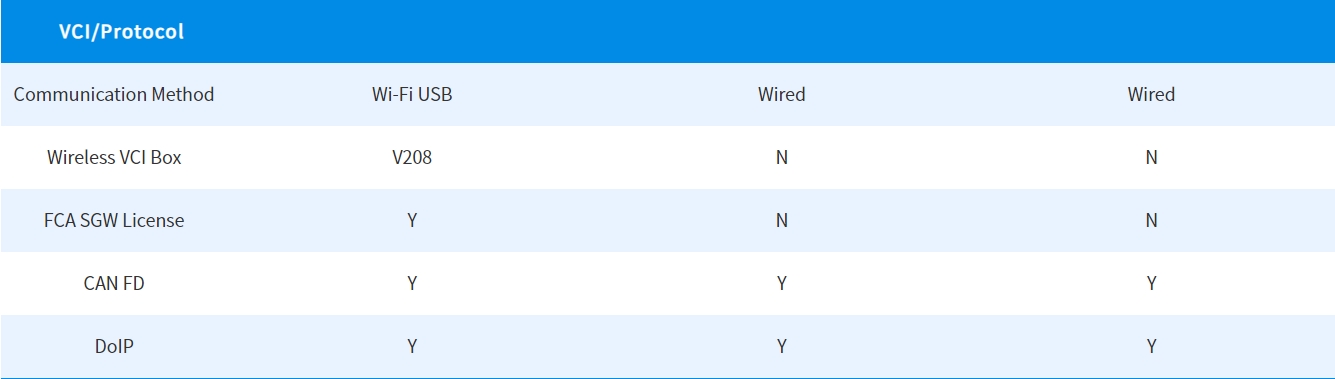

Protocol：CANFD, DOIP
Accessories
Tool kit
Certificate of Quality
Packing List
Quick Start Guide
Carton

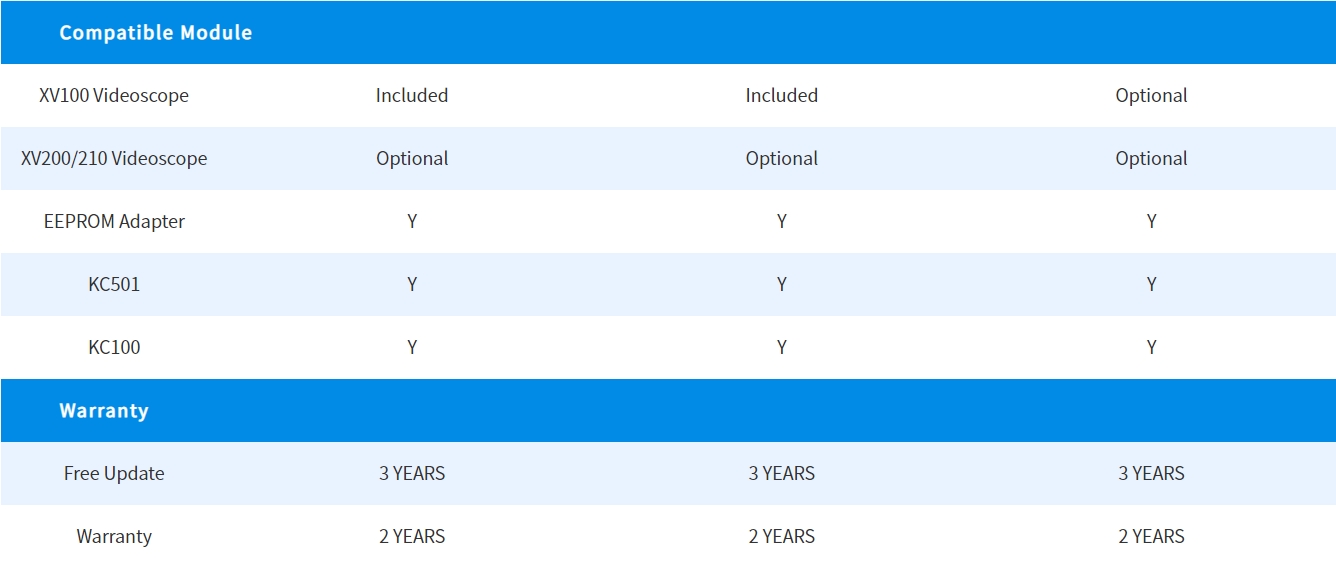

XV100 Endoscope (Separate packaging)
Main Units
Power adapter
US power cable
EU power cable
UK power cable
Tablet
USB cable
Test Connectors
OBDII-16 Adapter
DB15 Main Cable
